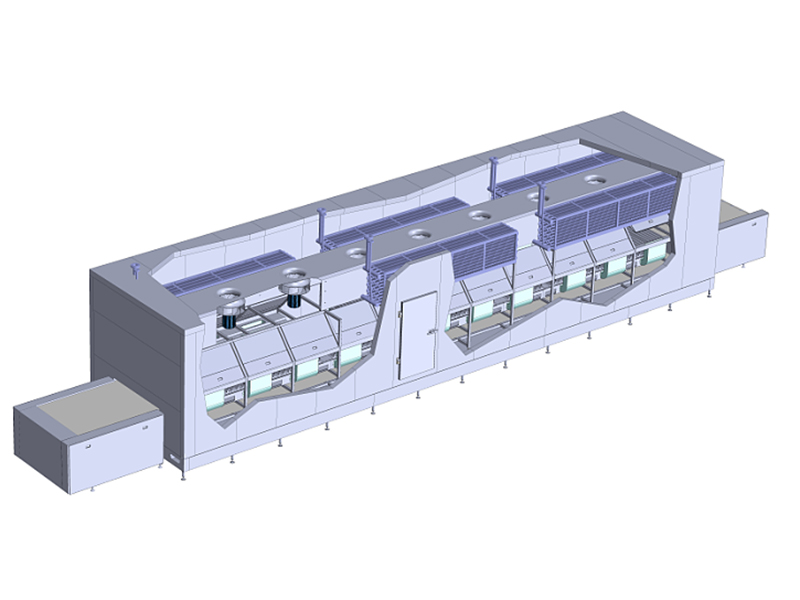

Impingement Band Tunnel Freezer

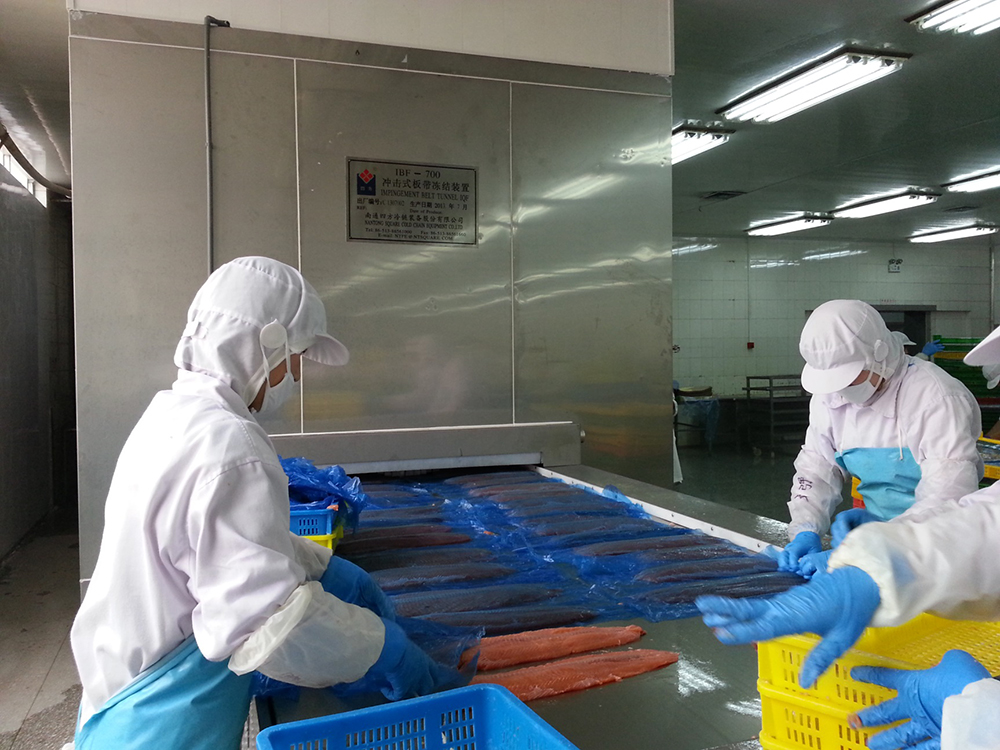

The tunnel freezer is primarily used to freeze food products, such as fish fillets, peeled shrimps, squids, dumplings, etc. Due to its air blasting mode, the tunnel freezer features high freezing efficiency and a variety of applications in food processing.

Notes: These parameters are subject to change based on different products and processes.

• The conveyor belt features a circular air duct design with a vertical symmetry in order to enhance the heat exchange effect.
• Both ends of the infeed and outfeed are equipped with double drive devices to effectively prevent the conveyor belt from slipping.
• Impingement band tunnel freezer uses an imported cold storage insulated panel production line for panel production, which ensures a high degree of energy efficiency and outstanding reliability and quality.
• Impingement band tunnel freezer is equipped with an intelligent central control system, automatic detection device and warning lights, which is easy for users to operate and maintain.

• We can design and manufacture the freezer based on different frozen food conditions and customer requirements.
• The production capacity ranges between 200kg/h to 1000kg/h.
• The width of the conveyor belt is 1500mm.
• We make customized infeed and outfeed conveyor upon customers' requirements.
• Fully welded enclosure structure is optional.
• The CIP automatic cleaning system can be chosen to efficiently clean the inside of the freezer and reduce downtime.
• The ADF air defrost system is suitable for continuous defrosting, thus allowing the freezer to work continuously.
